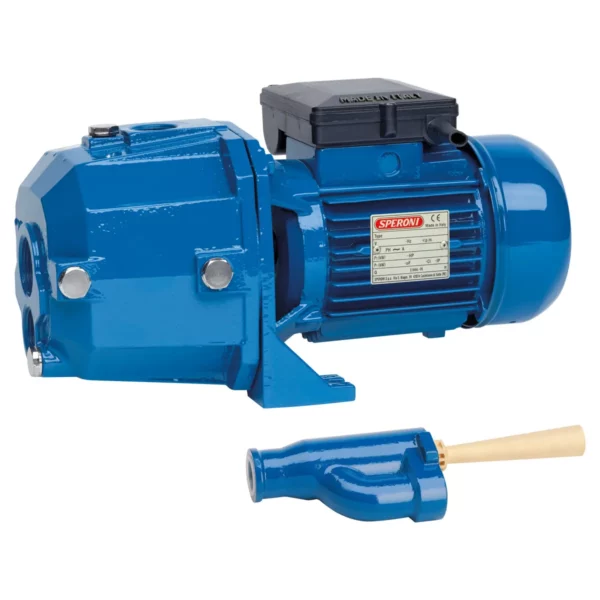

Speroni APM Series — Model# APM 100
APPLICATION
Selfpriming water pumps for deep suctions up to mt. 35 to be used in case of important water level gaps.
Suitable to drain water from wells and in domestic fittings by small and medium sized tanks.
Before installing the pump verify that all pipes (iron, plastic or rubber) are clean inside so to avoid any obstruction to the ejector nozzle.
At the foot of the ejector must be installed a foot valve or a check valve.
Installed the pump, fill completely both pipes and pump body with clean water.
To preserve an efficient priming it is necessary a certain pression in the circuit, therefore it is recommended to install a membrane tank at the delivery of the pump.
Speroni APM Series — Model# APM 100
Download Technical Data Sheet: Download
Speroni APM Deep Well jet pumps: APM Series
OPERATING CONDITIONS
Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
Ambient temperature up to 40°C
Total suction lift up to 35 mt.
Continuous duty
Standard ejector P30
MOTOR
Two-Pole induction motor (n = 3450 min-1)
Insulation Class F
Protection IP 44
| Application | Irrigation and Garden Use, Lawn Watering, Residental Water Supply, Small-scale agricultural, Water Transfer |
|---|---|
| AC Voltage | 220v |
| Phase | Single Phase |
| Ejector | P30 |
| Nominal Power | 0.75 kW, 1 HP |
| Performance | H (ft.) = 105, Q (G/min) = 6.6 |
| Brand | Speroni |
