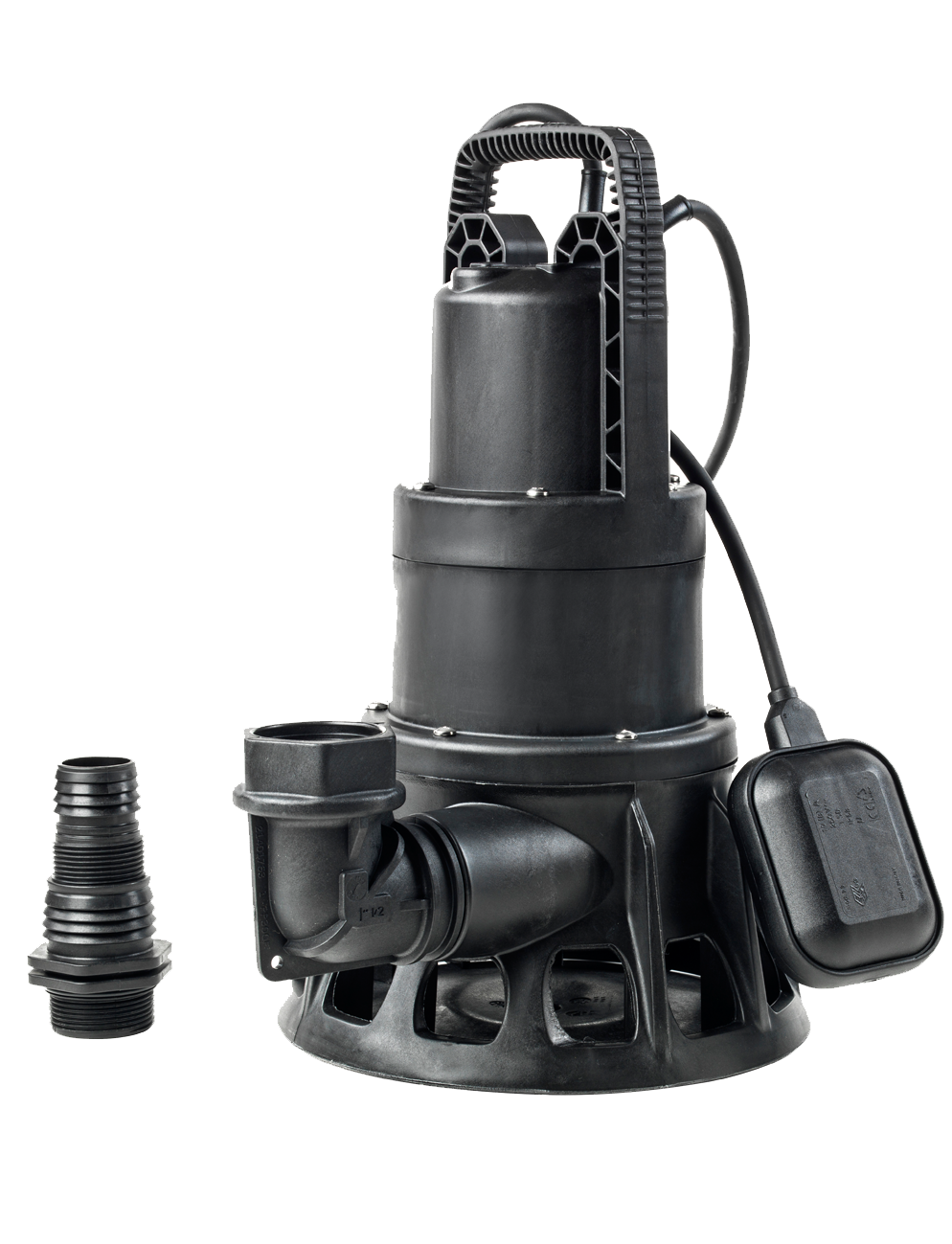

BVP & BVP Max

BVP & BVP Max
Categories , , Tags , , , ,

Applications
Multi-purpose submersible pumps for drainage, emptying, pumping water between containers,
to circulate water in garden ponds, create water falls and play water features.
Suitable to pump clear water containing particles with maximum diameter up to 1”1/2.
* Drainage
* Emptying sumps
* Transfering water between large containers
* Circulating water in Garden ponds
* Water falls, Fountains &Water features
Constructional features of the pump
Technopolymer pump body.
Technopolymer impeller, diffuser, self-priming disc.
Anti-debris stainless steel strainer.
Constructional features of the motor
Induction motor, closed and cooled with liquid being pumped
Wear resistant shaft with triple lip seals to ensure a long life.
Built-in thermic overload protection
Capacitor permanently in circuit.
Manufactured according to UL 778 -2010 & CSA 108-1
Motor protection: NEMA6P
Insulation class: F
Cable Length: 16ft
Standard voltage: 115v 60Hz

Description

LEADER Pumps WATER SYSTEM — From 1 to 110 gpm with a head up to 39ft (17 psi), Model# BVP & BVP Max

Download Technical Data Sheet: Download

Download LEADER Pumps 60Hz Catalog: Download

Operating Range: From 1 to 110 gpm with a head up to 39ft (17 psi)
Liquid quality requirements: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically neutral, close to the characteristics of water
Liquid temperature Range: From 32°F to 95°F
Maximum solids: 1/2”
Maximum ambient temp: 104°F
Maximum operating pressure: 102 psi
Maximum submersion:
Installation: fixed or portable in a vertical or position
Special version on request: other voltages and/or frequencies

Additional information

Application

Irrigation and Garden Use, Lawn Watering, Rain Water Collection, Water Features
AC Voltage

115v
Phase

Single Phase
Nominal Power

0.75 – 1.11 kW, 0.75 HP, 1 HP
Performance

H (ft.) = 36
Brand

Leader Pumps
