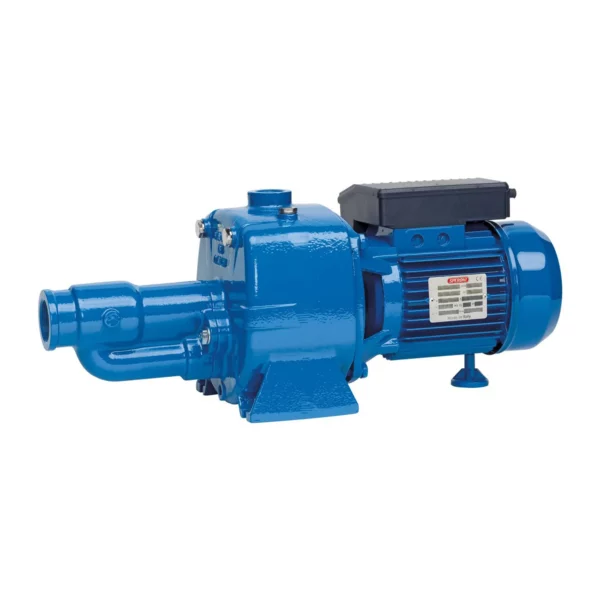

Speroni Pumps CAM Series — Models# CAM 150-200
Application:
Selfpriming twin-impeller water pumps with ejector for suction up to 9 mt.
A suction up to 35 mt. depth can be allowed by taking the ejector down and connecting it to the pump by means of a double hose and a foot valve.
Suitable for civil and industrial purposes and to drain clean and soda water and non-aggressive liquids.
SPERONI Pumps CAM Series — Models# CAM 150-200
Download Technical Data Sheet: Download
SPERONI Shallow well jet pumps: CAM-Series
OPERATING CONDITIONS:
Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
Ambient temperature up to 40°C
Total suction lift up to 9 mt.
Continuous duty
MOTOR
Two-Pole induction motor (n = 3450 min-1)
Insulation Class F
Protection IP 55
| Application | Irrigation and Garden Use, Lawn Watering, Residental Water Supply, Small-scale agricultural, Water Transfer |
|---|---|
| AC Voltage | 220v |
| Phase | Single Phase |
| Nominal Power | 1 to 1.5 kW, 1.5 to 2 HP |
| Performance | H (ft.) = 190 to 197, Q (G/min) = 21 to 26 |
| Brand | Speroni |
