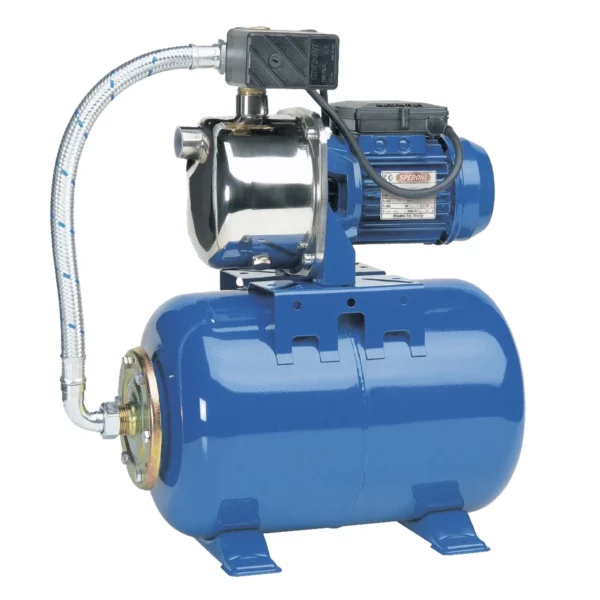

Speroni Pumps CAM Series — Models# CAM 88/25 – 98/25
Application:
Automatic high pressure groups coupled with self priming jet pumps.
They are very silent and reliable and particularly suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
SPERONI Pumps CAM Series — Models# CAM 88/25 – 98/25
Download Technical Data Sheet: Download
SPERONI Shallow well jet pumps: CAM-Series
OPERATING CONDITIONS:
Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Max. liquid temperature: 35°C (for other uses)
Ambient temperature up to 40°C
Total suction lift up to 8 mt.
Continuous duty
MOTOR
Two-Pole induction motor (n = 3450 min-1)
Insulation Class F
Protection IP 44
| Application | Irrigation and Garden Use, Lawn Watering, Residental Water Supply, Small-scale agricultural, Water Transfer |
|---|---|
| AC Voltage | 220v |
| Phase | Single Phase |
| Nominal Power | 0.75 kW, 1 HP, 1 kW, 1.3 HP |
| Performance | H (ft.) = 150, H (ft.) = 154, Q (G/min) = 13 |
| Brand | Speroni |
