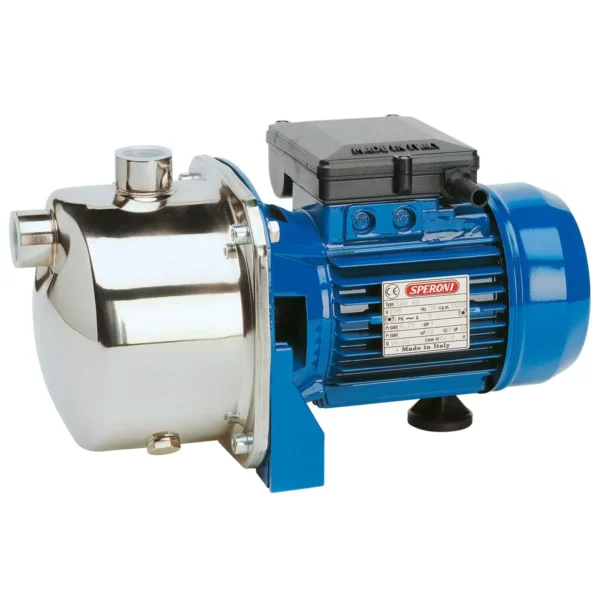

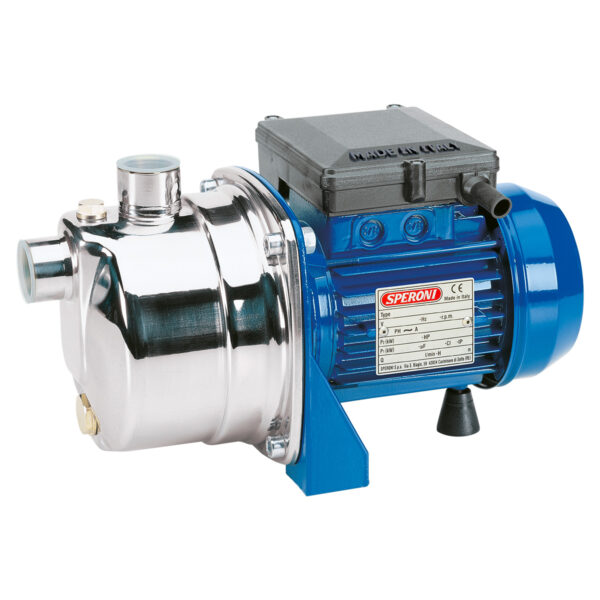

Speroni Pumps CAM Series — Models# CAM Inox 80-85-88
Application:
Selfpriming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
Able to pump up to mt. 8 depth and work perfectly even in soda-water.
Suitable for drinkable water, water lifting and distribution in domestic fittings by small and medium sized tanks.
SPERONI Pumps CAM Series — Models# CAM Inox 80-85-88
Download Technical Data Sheet: Download
SPERONI Shallow well jet pumps: CAM-Series
OPERATING CONDITIONS:
Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
Ambient temperature up to 40°C
Total suction lift up to 8 mt.
Continuous duty
MOTOR
Two-Pole induction motor (n = 3450 min-1)
Insulation Class F
Protection IP 44
| Application | Irrigation and Garden Use, Lawn Watering, Residental Water Supply, Small-scale agricultural, Water Transfer |
|---|---|
| AC Voltage | 220v |
| Phase | Single Phase |
| Nominal Power | 0.6 to 0.75 kW, 0.8 to 1 HP |
| Performance | H (ft.) = 125 to 150, Q (G/min) = 13 |
| Brand | Speroni |
