Description

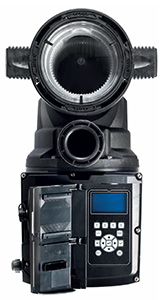

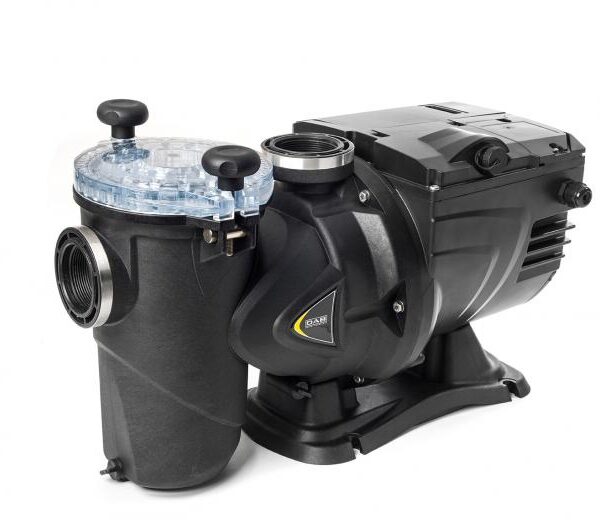

DAB Pumps Swimming Pools Pumps — Model# E.SWIM/PRO
Download Technical Data Sheet: Download
Download DAB Swimming pools pumps Catalogue: Download
TECHNICAL DATA
Operating range: up to 132 Gpm with head of up to 50 feet.
Pumped liquid: clean water, or slightly contaminated water with suspended solid debris, or long fibres; highly aggressive water with
high percentage of chlorine/bromine and PHMB (Polyhexamethylene biguanide), or chlorine electrolysis treated water.
PH Range: 6.5 – 8.4
Pumped liquid temperature range: up to 104 °F
Maximum ambient temperature: 122 °F
Maximum operating pressure: 36 psi
Nominal working pressure: 11.6 – 17.4 psi (ideally 14.5 psi)
Installation: fixed, horizontal position
Connectors on request: 2”/50 – 63
(two connectors+O-ring – see “Accessories”) kit
Standard of reference: IEC – 60364.
Protection class of the motor and the terminal box: IP X5
Protection class at the terminal board: IP X5
Insulation class: F
Standard voltage: single-phase 230 V – 50/60 Hz.
DESCRIPTION:
E.SWIM should be on top of your list to really make your system more efficient and optimize costs electricity.
E.SWIM is the new electronic swimming pool pump with high energy efficiency made by DAB.
Designed for water circulation and filtration in residential and civil swimming pools, and also suitable for specific applications requiring the handling of aggressive liquids like fish farming, agriculture and industry.
AN INTELLIGENT INVESTMENT:
The new E.SWIM is the best solution to dramatically reduce energy consumption.
A traditional pool pump indeed, consumes more current than all other utilities together.
