ECORAIN

Applications

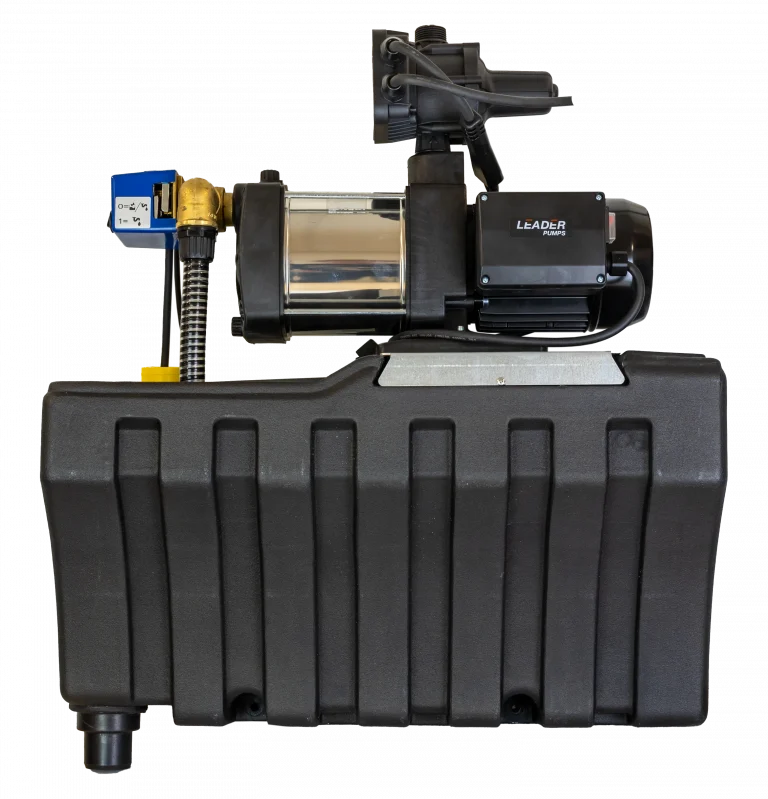

ECORAIN Essential is a complete and pre-assembled system for using rainwater. The system comprises a recyclable polyethylene tank, an ECOPLUS 240 and Mascontrol and a threeway automatic valve assembled on suction port of the pump. The system has been designed to be wall-mounted.Supplied with wall bracket and float switch, with 65 ft. of cable, as a standard.
ECORAIN Evolution & Advanced are complete and pre-assembled system for using rainwater in one or two- family houses.
The system comprises a recyclable polyethylene console, a completely automatic electronic control unit, threeway automatic valve and ECOPLUS 240 electric pump.
Supplied with wall bracket as a standard and float switch with 65 ft of cable for ECORAIN Evolution version, or level sensor probe with 65 ft. of cable for ECORAIN Advanced.
Constructional features of the pump
Technopolymer pump body and motor support.
Technopolymer impeller, diffuser, self-priming disc.
Carbon/ceramic mechanical seal.
Constructional features of the motor
Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and a long life.
Bult-in thermal and resettable overload protection on ECOPLUS 240
Capacitor permanently in circuit.
Manufactured according to UL 778 -2010 & CSA 108-1
Motor protection: NEMA3
Terminal Box protection: NEMA3
Insulation class: F
Standard voltage: 115v 60Hz
