ECOTRONIC

Applications

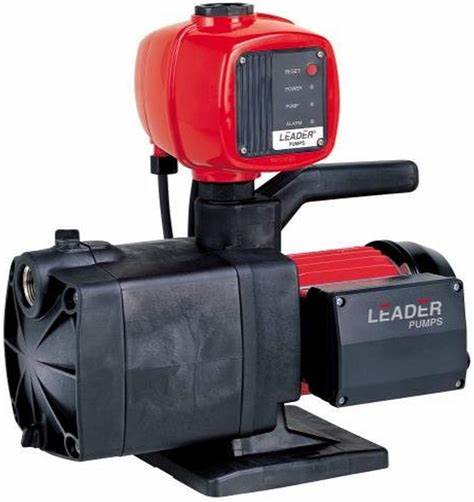

ECOTRONIC 110, 120 & 130 ECOJET self priming single impeller pump fitted with the Hydrotronic pump control system
ECOTRONIC 230, 240 & 250 ECOPLUS self priming multistage pump (with 2,3 or 4 impellers) fitted with the Hydrotronic pump
control system to supply water for systems including
Pressure Boosting
* Residential Homes
* Farming Applications
* Residential Irrigation
* Garden Irrigation Drip/Low Flow
* Hydroponics
* Rain Water Harvesting
* Water Supply from Shallow Wells
F version supplied with 5” filter housing and filter cartridge
Constructional features of the pump
Technopolymer pump body and motor support.
Carbon/ceramic mechanical seal.
Technopolymer impeller, diffuser, venturi and nozzle in ECOJET
Technopolymer impeller, diffuser, self-priming disc in ECOPLUS
Constructional features of the motor
Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and a long life.
Built-in thermal and current overload protection on ECOTRONIC 110 & 230
Bult-in thermal and resettable overload protection on ECOTRONIC 120, 130, 240 & 250
Motor protection: NEMA 3
Insulation class: F
Standard voltage: 115v 60Hz
