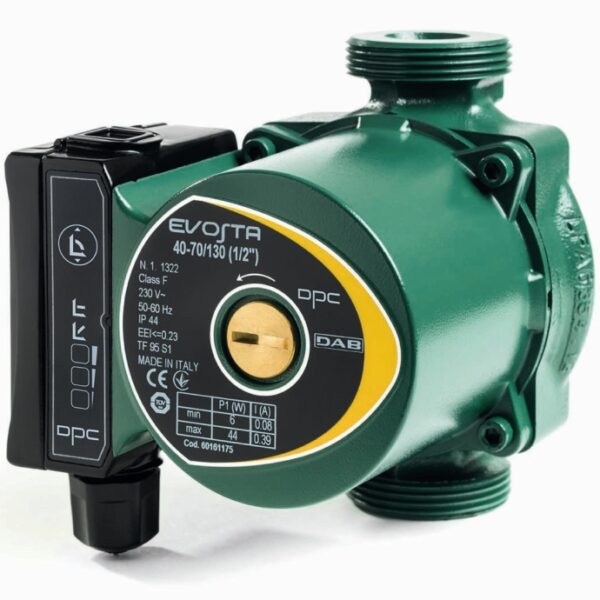

DAB Pumps Hot Water Circulator Pump – Model# EVOSTA

APPLICATIONS
Low power consumption pump for circulation of hot water, suitable for all types of domestic heating systems.

CONSTRUCTION CHARACTERISTICS
Cast iron pump body and wet rotor motor. Motor casing in die-cast aluminum. Techno polymer impeller. Ceramic motor shaft mounted on graphite bushings lubricated by the pumped liquid. Stainless steel rotor jacket, stator jacket and closing flange. Ceramic thrust ring. EPDM seal rings and brass breather plug. Thanks to the internal protection of the motor, the pump does not require any form of overload protection.

Description

DAB Pumps Hot Water Circulator Pump – Model# EVOSTA

Download Data Sheet for this Product: Download

TECHNICAL DATA
Operating range: from 0.4 to 3.3 m3/h with head up to 6.9 meters. Liquid temperature range: from +2 °C to +95 °C.
Working pressure: 10 bar (1000 kPa)
Protection rating: IP 44
Insulation class: F
Installation: with horizontal motor shaft.
Standard power supply: single-phase 1×230 V ~ 50/60 Hz
Pumped liquid: clean, free from solids and mineral oils, not viscous, chemically neutral, close to the properties of water (max. glycol contents 30%).

Additional information

Application

Cooling and Heating Systems, Hot Water Recirculation, Industrial Applications
AC Voltage

230v
Weight (kg)

2.6 – 2.8
Brand

DAB
