GO-111P (Cast Iron)

GO-111P (Cast Iron)
SKU 3810102 Categories , , Tags , ,

Applications

Ideal for pumping clean, non-volatile liquids without fibers or solids in below applications:

  • Small-scale booster systems.
  • Washing systems.
  • Garden sprinkling.
  • Small-scale irrigation.
  • Machinery applications such as welders and chillers.
  • Increasing the water pressure in the pipe.

Features

  • Develop good pressure at low flows by using low-powered motors.
  • Cast iron made pump body with an inserted bronze to prevent rust from jamming the bronze alloy impeller.
  • Equipped Thermo-sensing “loss of prime” pump protector: Automatically Cut Off power source when there is no water.
  • The motor is equipped with an overheat protection sensor.

    Where to buy:

    Pump Supermarket.com
    Pump Supermarket.com

Description

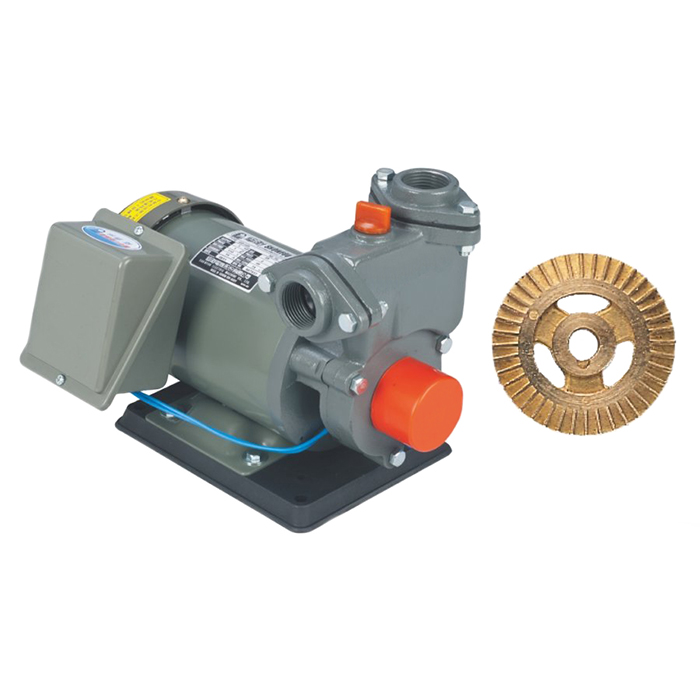

1HP Peripheral Pump, 115V, 1Phase, 1266 GPH, Model GO-111P (Cast Iron)

Download Technical Data Sheet: Download

Gol Pump Go Series

Performance Table

Brand Gol Pumps
Model GO-111P
Type Peripheral
Voltage (V) 115
Phase 1
Horsepower 1
Max Head (ft.) 147.6
Max Flow (GPH) 1266
Inlet/Outlet (in.) 1″ x 1″
Material Cast Iron
Weight (lb.) 28.7
Flange (inch) Pump Installation Size (inch)
Inlet Outlet A B C D E
1 1 9.1 1.1 7.2 9.3 12.3

Performance Curve

Dimensions



Parts List

Installation

Additional information

Application

Cooling and Heating Systems, Domestic Water Supply, Irrigation and Garden Use, Pressure Boosting
AC Voltage

110-115 volts
Phase

Single Phase
Nominal Power

0.75 kW, 1 HP
Performance

H (ft.) = 148, Q (G/min) = 21
Brand

Gol Pumps
