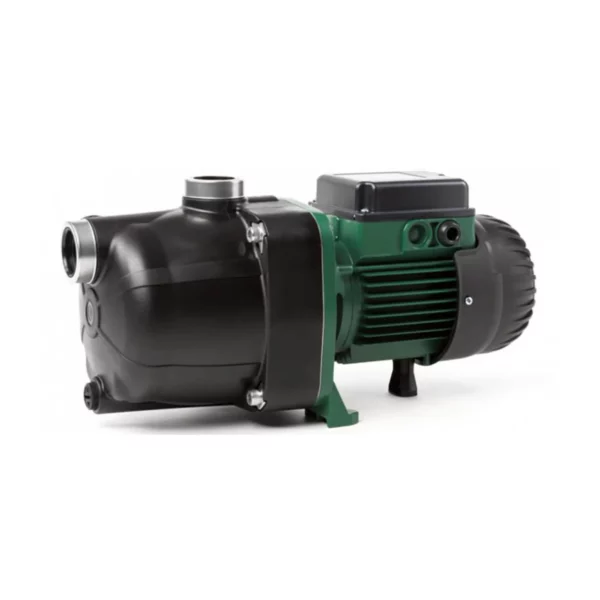

JETCOM SP – EUROCOM SP

TECHNICAL DATA For Jetcom SP

Operating range: from 0.6 to 5.4 m3/h with head up to 54 metres.
Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41).
Maximum ambient temperature: +40°C
Maximum operating pressure: 6 bar (600 kPa)
Maximum suction depth: 8 metres.
Installation: fixed in a horizontal position.
Special executions on request: alternative voltages and/or frequencies.
Motor protection rating: IP 44
Terminal block protection rating: IP 55
Insulation class: F
Standard input voltage: single phase 220/240 V / 50 Hz three phase 230/400 V – 50 H

TECHNICAL DATA For Eurocom SP

Operating range: from 10 to 120 litres/min. with head up to 72 m.
Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallized and chemically neutral, close to the properties of water.
Liquid temperature range:
for domestic use: from 0°C to +35°C (EN 60335-2-41)
for other use: from 0°C to +40°C
Maximum ambient temperature: +40°C
Maximum operating pressure: 6 bar (600 kPa)
Installation: fixed or portable in a horizontal position.
Motor protection rating: IP 44
Terminal block protection rating: IP 55
Insulation class: F
Standard input voltage: single phase 220/240 V – 50 Hz three phase 230/400 V – 50 Hz
