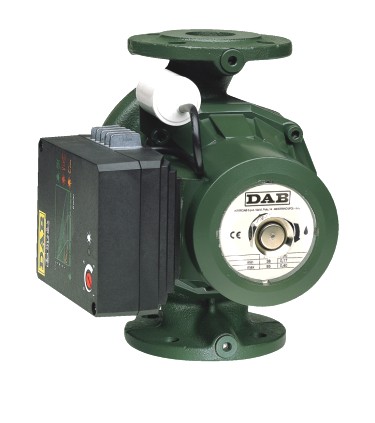

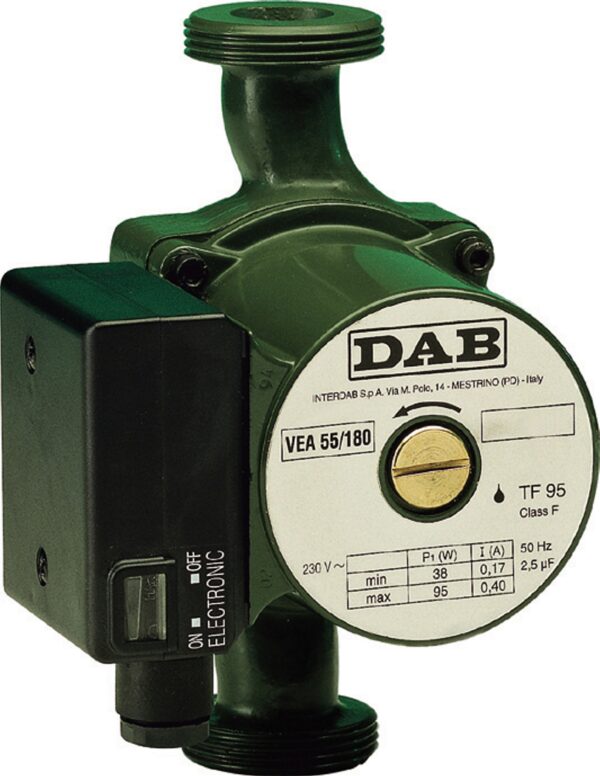

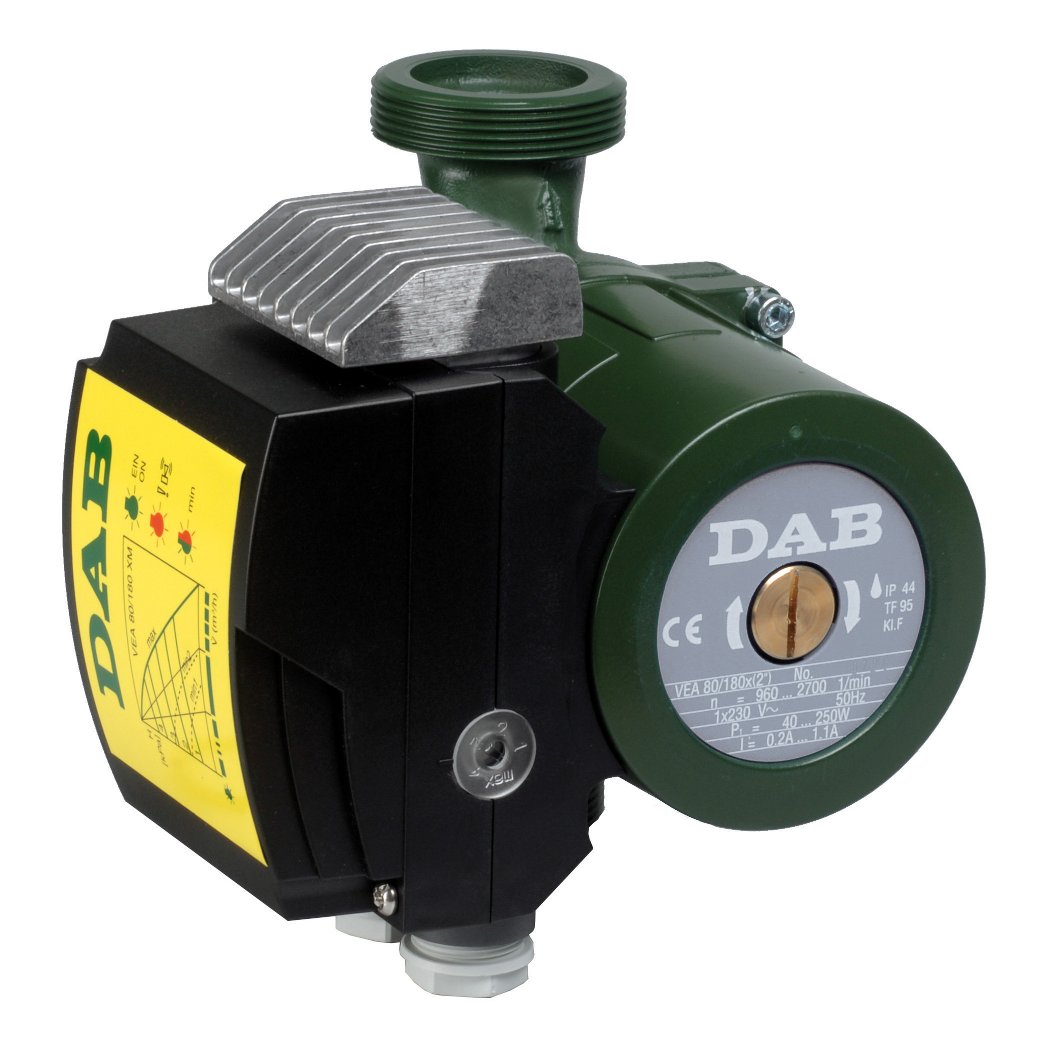

VEA

TECHNICAL DATA
Operating range: from 0,5 to 3,5 m3/h with head up to 5 meters.
Performance: according to corresponding curve characteristics.
Liquid temperature range: from +2°C to +95°C.
To prevent condensation from forming inside the motor, the pumped liquid must always be above room temperature.
Characteristics of pumped liquid: clean, free from solids and mineral oils, non viscous, chemically neutral, close to the characteristics of water (max. glycol 30%).
Maximum working pressure: 10 bar (1000 kPa).
Minimum head pressure: values referring to maximum flow and fluid at +90°C: 1,5 meters.
Installation: with MOTOR AXIS HORIZONTAL on the delivery or return piping and intake mouth as near as possible to the expansion tank, higher than the maximum level of the boiler and as far away as possible from bends, elbows and unions, in order to prevent water turbulence and consequent noisiness.
Protection level: IP42
Insulation class: F
Cable grommet: PG 11
